Automated Guide Vehicles And The T-Series

The most dangerous failure in any automated system is the one nobody sees coming. AGVs have transformed port operations by removing workers from hazardous environments and keeping cargo moving around the clock regardless of conditions. But the same design that makes them efficient creates a blind spot. There is no operator on board to notice heat build-up, catch a wiring fault, or stop the vehicle before a battery fire takes hold. By the time the control room gets an alert, the situation may already be out of hand. At a busy container terminal where a single incident can shut down a dock section, delay vessels, and put flammable cargo at risk, that blind spot needs to be covered.

Port operators do not adopt AGV technology because it is interesting. They adopt it because the math works.

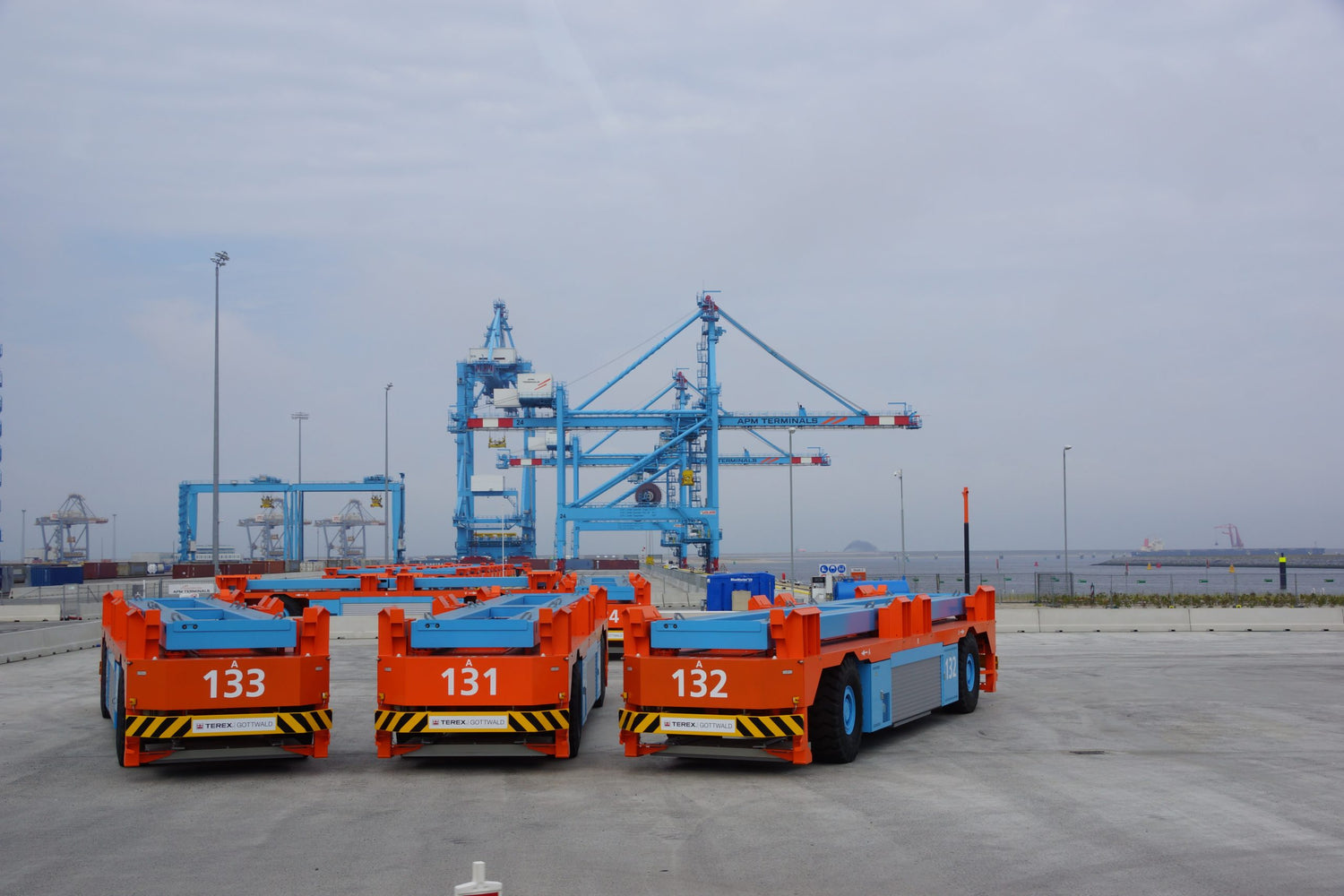

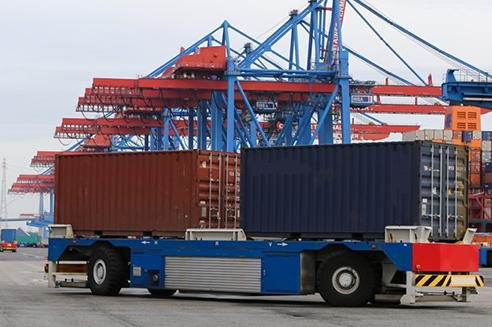

Automated Guided Vehicles handle the most dangerous part of container terminal operations: positioning underneath ship-to-shore cranes while containers are being lowered. Removing workers from that zone eliminates one of the highest injury-risk scenarios in port logistics. That alone makes the business case, but the productivity argument is just as strong.

AGVs run on onboard software and radar collision systems that do not require visibility or favorable conditions to operate. Heavy fog, severe weather, the middle of the night: the vehicles keep moving, containers keep flowing, and ships turn around faster. For a port operator paying demurrage on a delayed vessel, every hour of uninterrupted throughput has a direct dollar value.

The world's busiest ports have taken notice. AGV adoption is accelerating because the combination of improved worker safety and around-the-clock operational efficiency is difficult to argue against once you run the numbers.

The same qualities that make AGVs productive are what make fire protection non-negotiable.

Because there is no operator on board, there is no one to smell smoke, notice unusual heat, or catch a problem before it develops. The vehicle keeps running until a fault registers in the control system and sends an alert to the remote operations team. In a fast-moving battery fire, that response window may already be too late.

The fire risk in this application centers on the battery compartment. AGVs run fully electric drive and operating systems powered by high-density battery packs housed in compact enclosures. That combination, high energy storage in a confined space, creates real exposure. Aging wiring connections, exposed conductors, heat build-up during continuous operation, and debris accumulation are all established pathways to an electrical fault. Any one of them can escalate quickly inside a sealed battery compartment with no operator present to intervene.

The consequences of a fire on an operating AGV go well beyond the vehicle itself. A fire event forces that section of the dock offline. The cargo on board is damaged or destroyed. And depending on what that cargo is, the situation can escalate fast. Ports regularly handle flammable fuel sources. An AGV fire in proximity to that kind of cargo is not a contained equipment loss. It is a major incident.

The AGV’s have been equipped with the BlazeCut T800ES, a customer made solution for the application.  The assessment was done on required volume and amount of useable space that is available on the AGV. The BlazeCut ‘T’ Series system contains the highly effective HFC-227ea fire suppression agent and was installed above the high-risk area, this allowed the self-contained automatic fire suppression system to effectively cover the risk area within the AGV and improve the upon the risk reduction. The T series fire suppression system was clipped to ensure the batteries could be still inspected and not interfere with regular maintenance programs. The installation required no heavy clamps or mounting brackets which is ideal for simplicity and monitoring.  The T Series product that was installed has a maintenance free life and is expected to remain in service for up to 10 years.

The Result

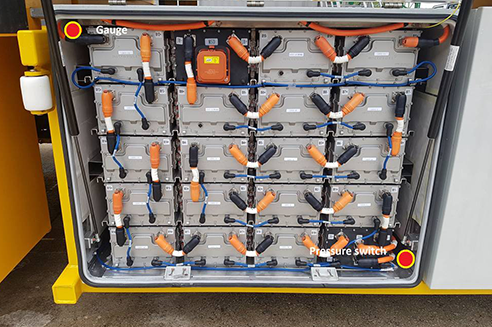

Each AGV is now equipped with a BlazeCut T Series fire suppression system installed directly inside the battery compartment.

The system requires no wiring, no pressurized cylinders, and no integration with the vehicle's onboard controls to function. The BlazeTube is routed and clipped into position above the high-risk battery area, sized to the available space inside the enclosure. If temperature inside the compartment reaches the activation threshold, the tube discharges FK-5-1-12 suppression agent automatically, at the exact point of highest heat, before the fire can spread to the vehicle structure or the cargo above it.

Installation is straightforward enough that it does not disrupt maintenance schedules or require heavy modification to the vehicle. A pressure inspection point is positioned at an easily accessible location on the AGV so technicians can confirm the system is ready during routine service checks without any disassembly.

Once installed, the system runs continuously. No monitoring required. No operator present. No power connection needed to maintain protection. The AGVs operate around the clock and the suppression system does the same, with an expected service life of up to 10 years.
