DISCOVER THE T SERIES
If It's Enclosed and It Can Burn, It Can Be Protected
The T-Series is sized to the enclosure, not the other way around. That flexibility makes it viable across industries where conventional suppression is too complex, too expensive, or simply impractical to install at scale.
How It Works
-
The Tube Is the Detector
The BlazeCut Tube - a heat-sensitive polymer tube with stainless steel fittings -runs through the protected space.
Every centimeter monitors temperature simultaneously. No discrete sensors, no dead zones, no blind spots. The whole thing is the detector.
-
The Tube Stores the Agent
The same tube holds the entire charge of FK-5-1-12 suppressant at ≥99.0% purity, pre-charged and sealed at the factory. No cylinder to mount, no hoses to route, no pressure connections on-site. The system ships ready to install.
-
Heat Triggers Automatic Discharge
When any point on the tube reaches its actuation threshold - up to 105°C ±3°C for standard models - the polymer melts at that precise location, which is also the point closest to the fire. The full charge of FK-5-1-12 discharges directly onto the fire source. Not near it. At it.
-
Clean Suppression - Nothing Left Behind
FK-5-1-12 (CAS 756-13-8) is non-conductive, non-corrosive, and leaves zero residue. It boils at 49°C, vaporizing rapidly through the enclosure. Not listed as a carcinogen by NTP, IARC, or OSHA. Rated for Class A, B, C, and E (electrical) fires. Anything the agent contacts is unharmed.
Manage A Fleet Or Are You Looking Procurement For A Major Project?

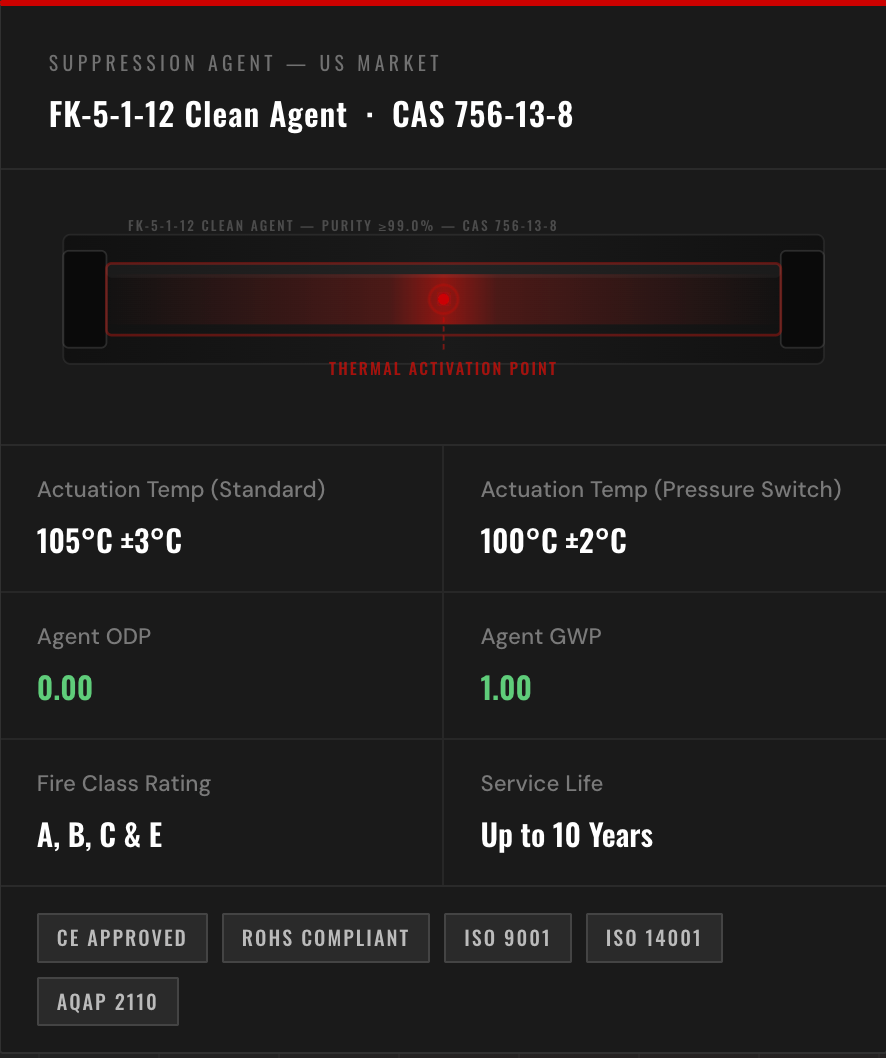

FK-5-1-12: What the Data Says
An Agent With Nothing to Hide
FK-5-1-12 was chosen as the US-market agent for the T-Series because its profile clears every modern environmental and occupational safety screening without caveats.
An ODP of exactly zero. A GWP of 1.00 - the same reference value as CO₂ itself. Not classified as a carcinogen by any major regulatory body. Not hazardous for transport by land, sea, or air. Not a PBT (persistent, bioaccumulative, toxic) substance.
For EHS officers and purchasing managers who need to sign off on SDS documentation and chemical inventory compliance, this profile is straightforward. For facilities with sustainability reporting requirements or LEED considerations, the near-zero environmental footprint is documentable and defensible.
The 49°C boiling point means the agent vaporizes immediately on discharge, distributing rapidly through the protected enclosure and leaving no residue behind. The density of 1.6 keeps it in the space where it's needed.

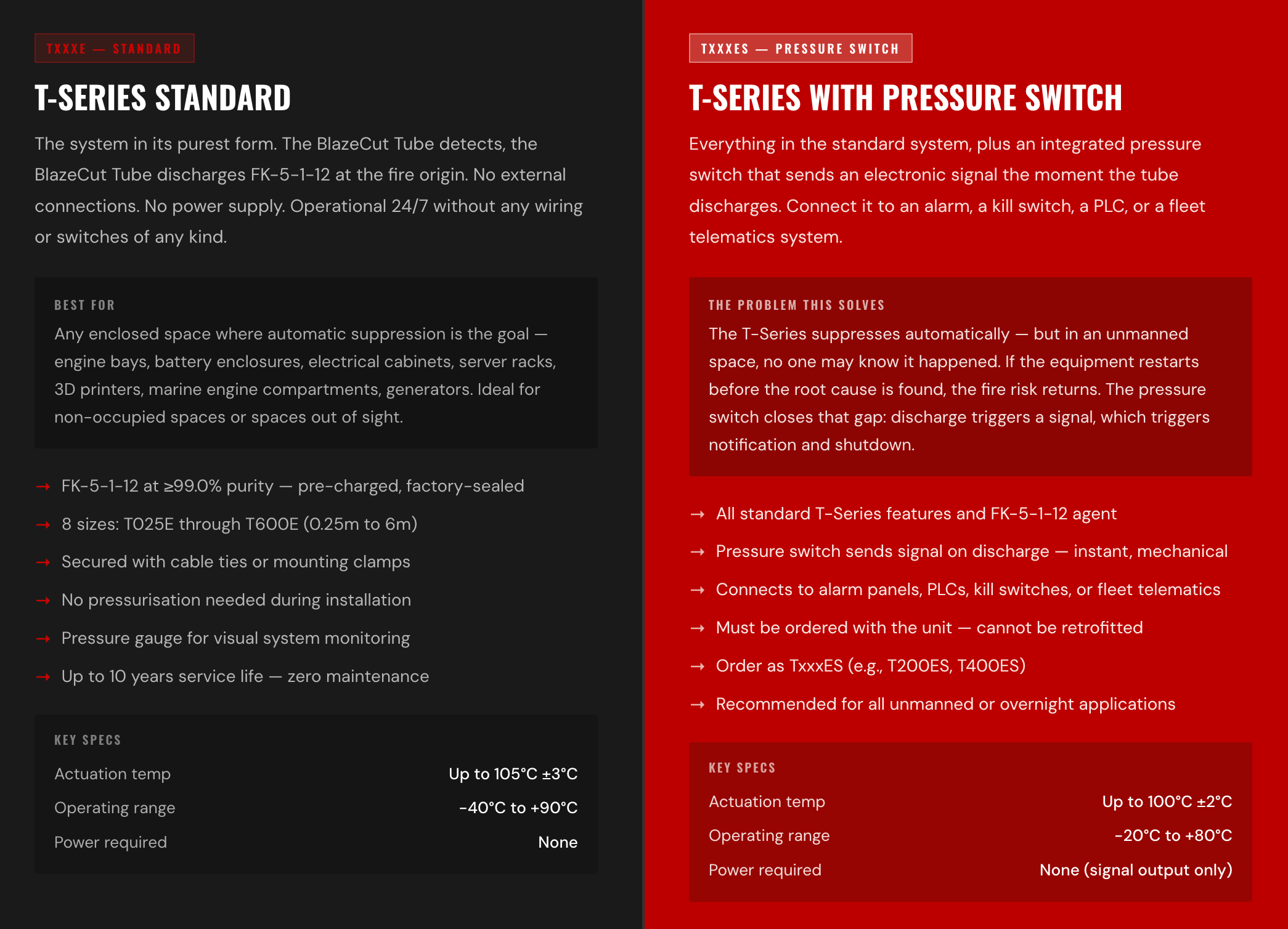

Standard or Pressure Switch
Image with text
The T Series is built around a simple idea: the system should fit the application, not the other way around.

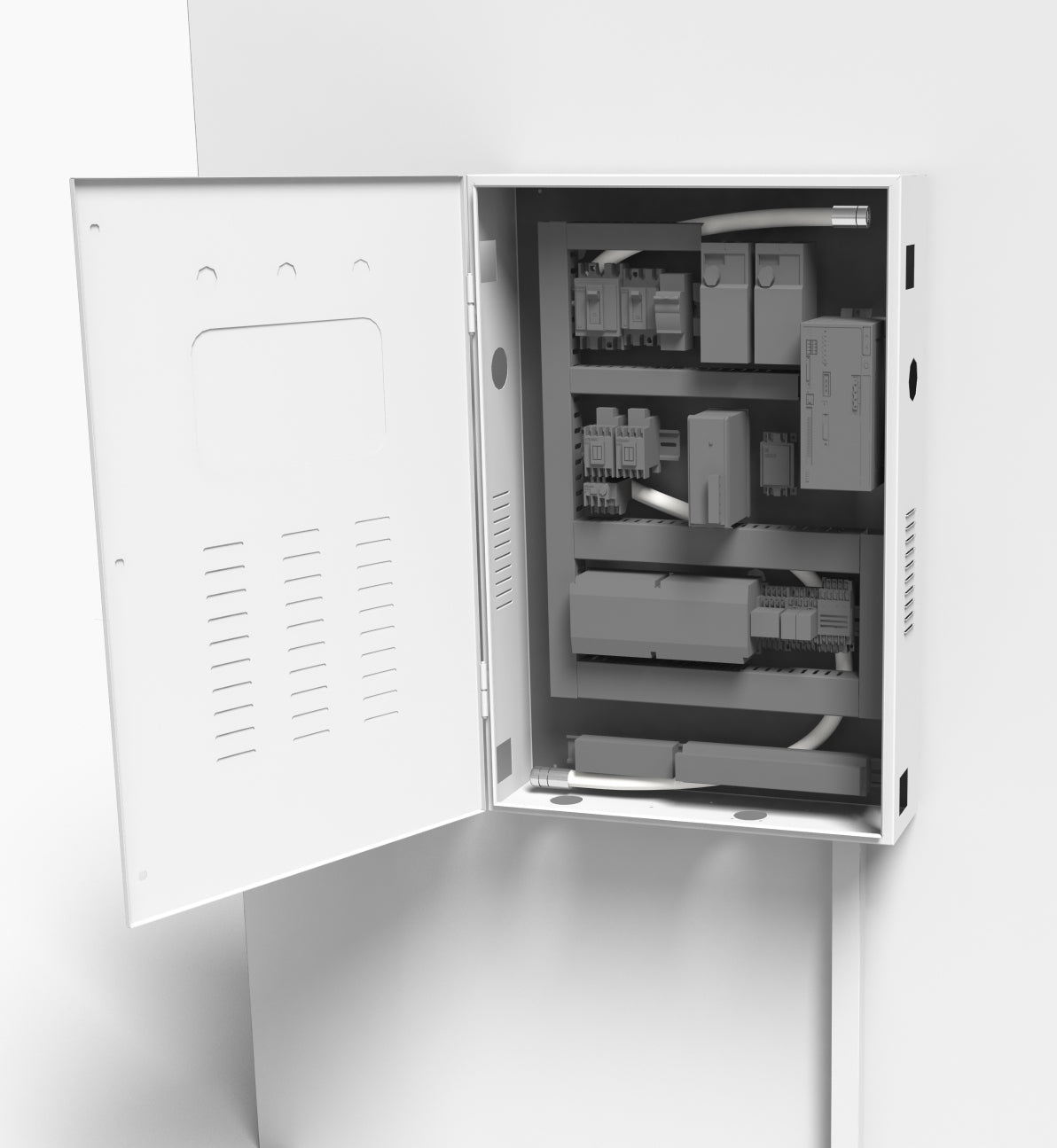

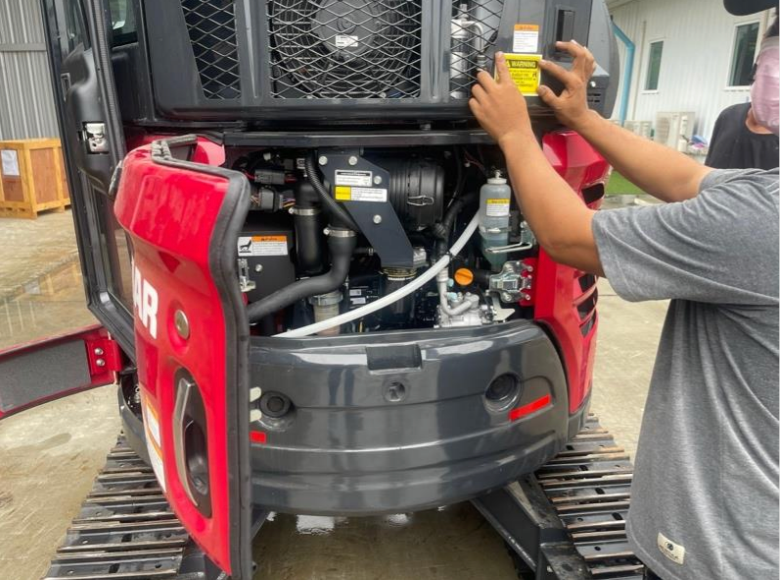

Available in lengths from 10 inches to 26 feet, with agent volumes ranging from 0.55 lbs to 4.4 lbs, the T Series scales to the enclosure being protected. Compact electrical panels, engine bays, server cabinets, battery compartments, industrial control enclosures - the same system covers all of it, sized and routed to match the specific space and risk area rather than forcing a one-size compromise.
Coverage ranges from 3.5 cubic feet to 141 cubic feet, which handles the majority of enclosed fire risks across manufacturing, fleet, data infrastructure, and industrial applications. Installation requires no heavy hardware, no wiring, and no modification to the enclosure itself. The tube clips or zip-ties into position, the system is self-contained from day one, and once installed it runs without maintenance for up to 10 years.
For distributors and dealers evaluating the line, that range means a single product family covers an extremely wide cross-section of customer applications. One relationship with BlazeCut USA opens the door to a lot of conversations.
