Automatic Fire Suppression for Manufacturing Equipment, Machinery, and Electrical Panels

A fire inside an electrical panel, a CNC enclosure, or an electric forklift battery compartment does not wait for a shift to start or a supervisor to walk the floor. It starts small, inside a sealed space nobody is watching, and by the time anyone notices, the panel, the machine, and the schedule behind it are already a loss.

BlazeCut protects that space automatically, whether it is a control cabinet, a lathe, a mill, or the battery pack on a forklift, with no operator, no wiring, and no control panel required to catch it in time.

How Does The T-Series Work?

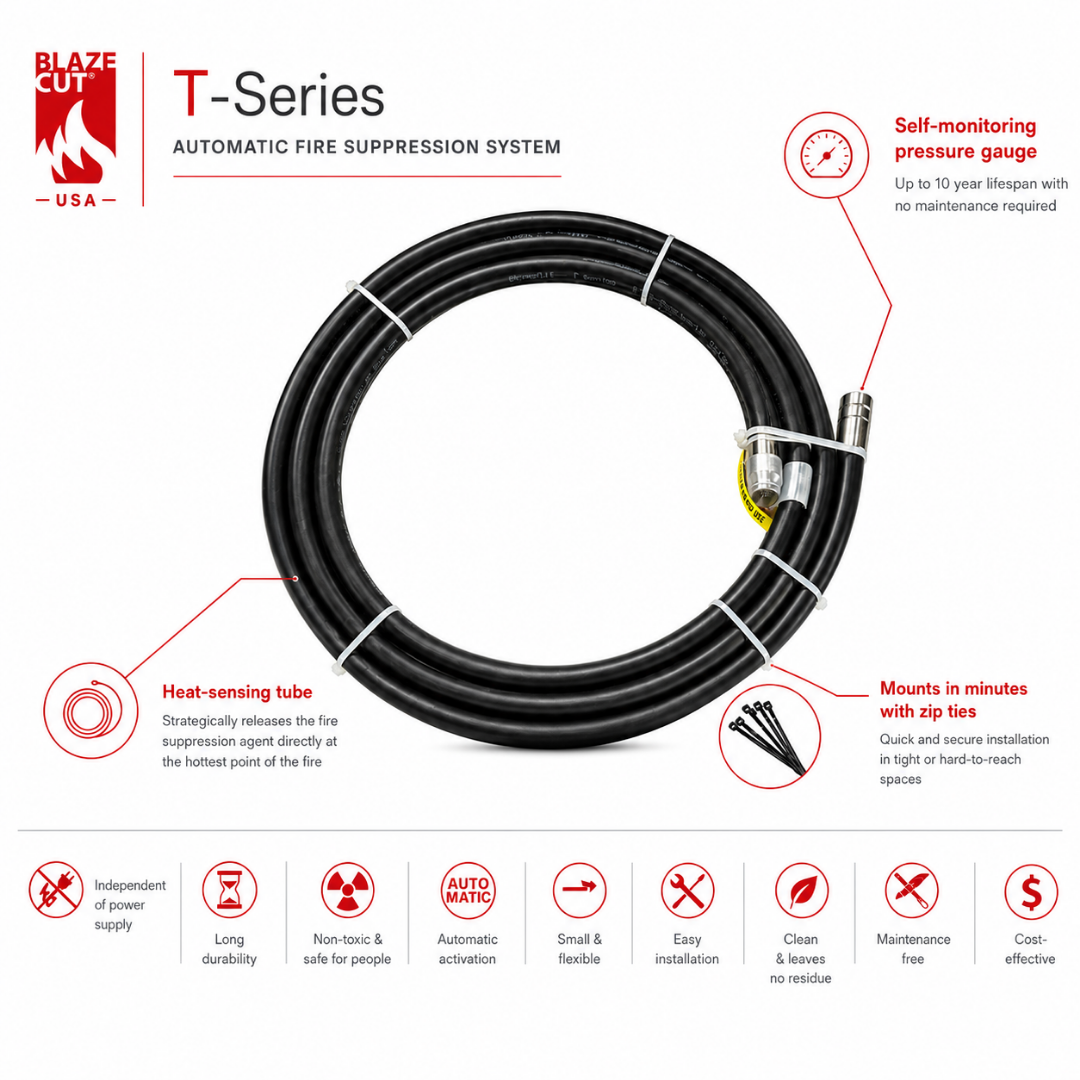

A diagram of the t-series automatic fire suppression system from BlazeCut

The BlazeCut tube is the detector and the extinguisher in a single sealed unit, installed directly inside the panel, machine housing, or battery compartment it protects. Every point along the tube senses heat continuously.

When any point reaches the actuation threshold, the tube ruptures at that exact location and discharges the agent directly onto the ignition source, whether that's inside a control cabinet, a CNC enclosure, or an electric forklift's battery bay, before it spreads to the equipment next to it or the line behind it.

No power required. The T-Series operates independently of any electrical supply, which matters inside an electrical panel where the fire event itself may be a power failure, and on battery-powered equipment where the failure originates in the power source itself.

Clean agent, no cleanup. FK-5-1-12 leaves no residue, which matters on precision equipment like CNC machines and lathes, where a dry chemical or water-based discharge would itself take the machine out of service and contaminate tooling.

Sized to the equipment. Available in lengths from 10 inches to 26 feet, covering roughly 3.5 to 141 cubic feet, so the same product line fits a single control panel, a full machine housing, or a forklift battery compartment.

Typical Installation Points in Manufacturing Facilities

Electrical & Control Systems

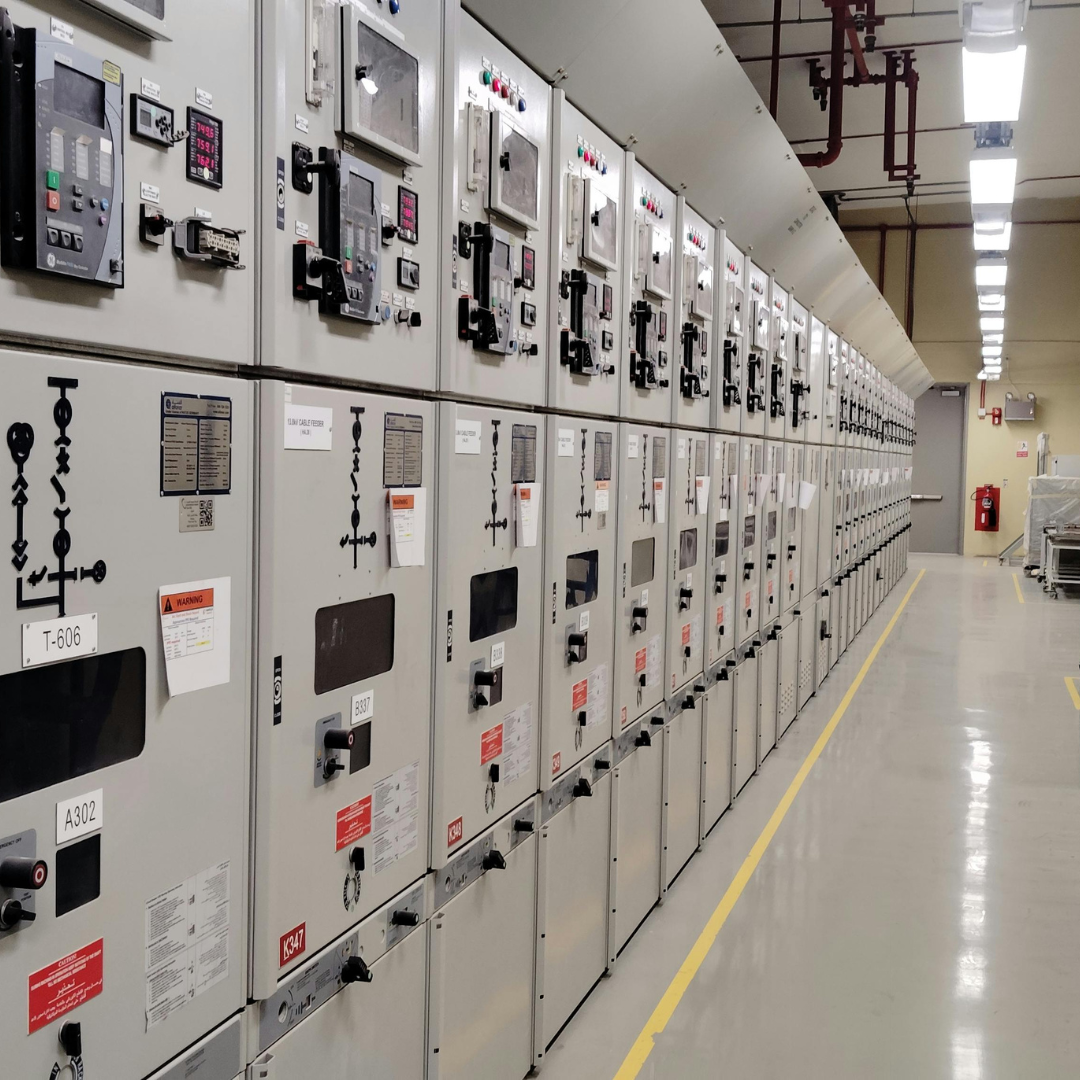

  • Electrical and control cabinets
  • Fume cabinets and extraction equipment
  • Battery charging and energy storage cabinets

Machine Tools & Production Equipment

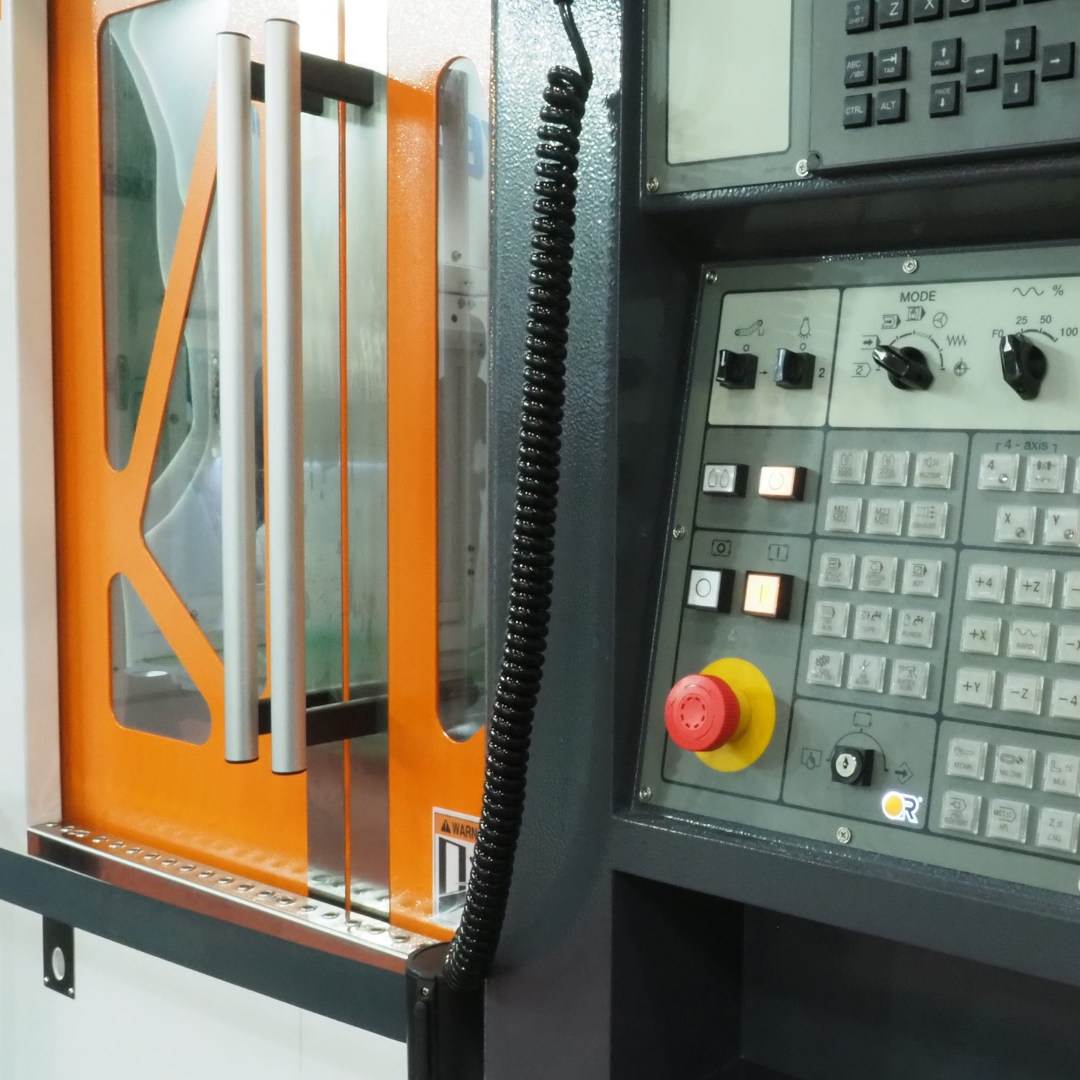

  • CNC machines and machining centers
  • Lathes and milling machines
  • Injection molding and plastics processing equipment
  • Robotic and automated production line enclosures
  • Welding equipment and enclosures

Material Handling & Mobile Equipment

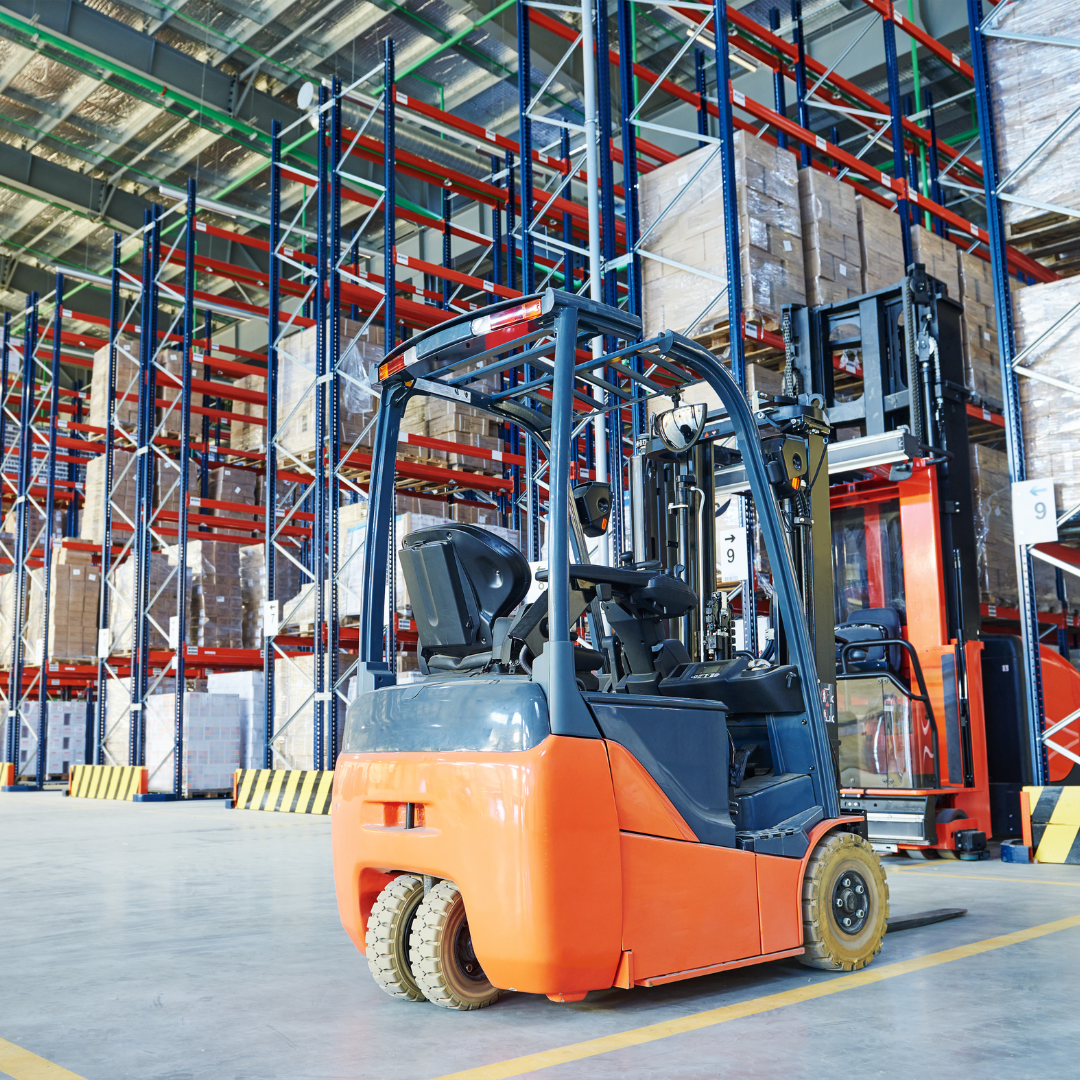

  • Electric forklifts and battery compartments
  • Electric pallet jacks and warehouse equipment
  • Battery-electric AGVs (automated guided vehicles) used in production and warehousing

Protecting Your Facility, Your Equipment, & Your Employees

A single system protects one cabinet or one machine.

A facility-wide rollout protects the production line. We work directly with facilities managers, plant engineers, and safety directors to size systems across a full equipment list and structure pricing for facility-wide and multi-site deployments.

Contact Dalton at dalton@blazecutusa.com to scope a facility or multi-site deployment.

What BlazeCut Saves You

  • MONEY

    A single fire can take out a control panel, a CNC machine, or a forklift battery pack, along with every hour of production scheduled behind it. Multiply that across a facility running dozens of machines and a fleet of electric equipment on unattended shifts, and the cost of one uncontained fire is almost always higher than the cost of protecting the floor. Fleet-wide suppression turns an unpredictable loss into a fixed, budgeted cost.

  • DOWNTIME

    A fire that gets contained inside the panel or the machine it started in is a five-minute stop and a work order. A fire that spreads is a line down, a replacement machine on order, and every job scheduled behind it pushed back. Suppression at the source is what keeps one bad component from turning into a week of lost production.

  • TIME

    No one has to notice the fire, grab an extinguisher, and reach the machine before it spreads. Whether it is a panel, a lathe, or a forklift charging overnight, the system is already inside the space it protects, sensing heat continuously along its full length, and it discharges the moment it detects ignition. That is the difference between a five-minute stop and a production line down for days while a machine gets replaced.

  • SAFETY

    Nobody has to walk up to a burning panel or a smoking machine to deal with it. The system suppresses the fire before it grows, which means less smoke, less heat, and less exposure for anyone on the floor, and no employee put in the position of grabbing a handheld extinguisher and getting close to something that's already out of control.

  • EFFORT

    There is no control panel to program, no wiring to run, and no scheduled maintenance to track. The T-Series is installed once, inside the panel, machine, or battery compartment it protects, and it works independently of any electrical supply for up to 10 years. Your team is not adding a system they have to babysit on top of running the floor.

  • PEACE OF MIND

    Once it is installed, it works whether or not anyone is on the floor. Night shifts, unattended CNC runs, forklifts charging after close, weekends when the building is empty. A facility with suppression built into every panel, machine, and high-risk enclosure is a facility where "we caught it in time" is not left up to chance.

1 6

  • LPS 1666, LPCB approved. LPCB (the Loss Prevention Certification Board, part of BRE Global in the UK) is one of the most established third-party fire testing and certification bodies internationally, and its approval is widely recognized and accepted by insurers and AHJs.
  • CE Mark. Certifies the system meets applicable EU health, safety, and performance requirements, independently verified.
  • Independently performance tested at an accredited testing institute, Strojírenský zkušební ústav, s.p., in the Czech Republic.
  • Designed in accordance with NFPA 2001. This is the specific US standard governing clean agent extinguishing systems.
  • Manufactured at an ISO 9001 and ISO 14001 certified facility, also certified to AQAP 2110. AQAP 2110 is a NATO quality assurance standard for design, development, and production.

On UL and the Authority Having Jurisdiction: NFPA 2001 and the fire codes that reference it (including the International Fire Code, which most US states and municipalities adopt in some form) require equipment to be listed or approved for its intended use by a nationally or internationally recognized testing body, not exclusively UL.

The final call on what satisfies "listed or approved" for a specific installation sits with the local Authority Having Jurisdiction (AHJ), and in most states an AHJ can and does accept an internationally recognized certification like LPCB in place of a UL listing.

Confirm your specific facility requirements with your safety director, your insurance carrier, or your local Authority Having Jurisdiction before treating any of this as a compliance checklist. Requirements vary by facility classification, occupancy, and local fire code adoption, and an AHJ always has final say on what it will accept for a given installation.

See Our Full List Of Certifications

Manage A Fleet Or Are You Looking Procurement For A Major Project?

We work directly with fleet managers and project managers to fulfill their fire suppression needs. Simply email Dalton: dalton@blazecutusa.com for purchasing options or volume discounts!

FAQ

What is the BlazeCut T Series fire suppression system?

The BlazeCut T Series is an automatic, self-contained fire suppression system. It requires no wiring, no external power supply, and no separate storage cylinder. A heat-sensitive tube filled with pressurized FK-5-1-12 clean agent runs through the protected enclosure and acts as both the detection device and the agent storage container. When a fire develops, the tube melts at the hottest point and discharges the agent directly onto the fire source. The entire process is automatic and requires no human intervention.

How does the system detect a fire?

The BlazeCut tube continuously monitors the temperature of the entire space it runs through. When heat from a developing fire causes the tube to reach its actuation temperature, the tube ruptures at that exact location, right at the fire source, and releases the agent. There are no sensors, control boards, or wiring required for the standard T Series to activate.

Does the BlazeCut T Series need electricity to work?

No. The standard T Series operates completely independently of any power supply, 24 hours a day. This makes it well suited for protecting unoccupied spaces, equipment running after hours, engine compartments, and electrical enclosures where running wires is impractical or impossible. The optional pressure switch version can connect to an external signaling device if notification is needed, but the suppression system itself still does not require power to activate.

What extinguishing agent does BlazeCut USA carry?

BlazeCut USA carries the T Series charged exclusively with FK-5-1-12, also known by its chemical name Perfluoro(2-Methyl-3-Pentanone) and formerly marketed as Novec 1230. CAS number 756-13-8. It is a clean gaseous agent that is electrically non-conductive, non-corrosive, and leaves zero residue after discharge. It has zero ozone depletion potential and a global warming potential of 1.00 relative to CO2. FK-5-1-12 is listed in the US Toxic Substances Control Act (TSCA) inventory and is suitable for Class A, B, C, and electrical fire protection.

Does FK-5-1-12 leave a mess after the system fires?

No. FK-5-1-12 leaves absolutely no residue. There is no powder, no foam, and no water damage to deal with after the system activates. This is one of the main reasons it is the right choice for protecting electronics, server equipment, electrical control panels, and other sensitive equipment where a traditional extinguisher would cause serious secondary damage on top of whatever the fire already did.

Is FK-5-1-12 safe for people?

FK-5-1-12 is not classified as hazardous under standard conditions of use. Acute toxicity testing shows an oral and dermal LD50 greater than 2,000 mg/kg in rats and an inhalation LC50 greater than 1,227 mg/L over a 4-hour period. It is not listed as a carcinogen by NTP, IARC, or OSHA and has not been found to be mutagenic or toxic to reproduction. Standard precautions apply: avoid breathing vapors in an enclosed space at the time of discharge and ventilate the area before re-entry.

How difficult is it to install the BlazeCut T Series?

Installation is straightforward. The tube is secured inside the protected enclosure using heavy-duty cable ties or optional one-hole mounting clamps. No drilling, welding, or vehicle modifications are required. Each retail package includes the system, a user manual, cable ties, and warning labels. Most installations in engine compartments and electrical enclosures take under an hour.

Do I need a licensed technician to install it?

For most T Series applications, including engine compartments, electrical enclosures, small vehicles, and boats, installation does not require specialized tools or licensing. For fleet-wide deployments or larger commercial installations, we recommend working with an authorized BlazeCut dealer who can ensure proper sizing and placement. Visit our [Find a Dealer] page to locate one near you.

How do I figure out what size system I need?

System sizing is based on the volume of the enclosure being protected. Measure the width, height, and depth of the space in feet or meters to calculate the total volume. The smallest T Series option protects up to 3.18 cubic feet, and coverage scales up from there through the largest option, which protects up to 96.41 cubic feet for electrical fire applications and 73.45 cubic feet for engine fire applications. Coverage volumes are calculated at an ambient temperature of 68°F (20°C). If you are unsure which model is right for your application, email Dalton@blazecutusa.com and we can help you work through it.

What certifications does the BlazeCut T Series hold?

The BlazeCut T Series (6mm and 8mm BlazeTube configurations) is certified to LPS 1666 and carries CE approval. Systems have been independently performance tested at an accredited testing institute, Strojírenský zkušební ústav, s.p., in the Czech Republic, and are designed in accordance with NFPA 2001, the Standard on Clean Agent Fire Extinguishing Systems.

Is the BlazeCut T Series compliant with NFPA standards?

The T Series is designed in accordance with NFPA 2001, the Standard on Clean Agent Fire Extinguishing Systems. For specific compliance questions related to your facility, equipment, or local authority having jurisdiction (AHJ), we recommend consulting your AHJ directly or contacting us for guidance.

Is BlazeCut approved for the US market?

Yes. BlazeCut USA is the exclusive US importer and master distributor of BlazeCut fire suppression systems. The T Series is certified to LPS 1666 and CE approved, and the FK-5-1-12 agent is listed in the US TSCA inventory.

Can it protect an electric forklift or lithium battery compartment?

BlazeCut T Series systems can be deployed in the electrical and battery enclosures of electric forklifts and other electric-powered equipment. Lithium battery fires present specific suppression challenges, and the right system configuration depends on the enclosure size and layout. Email Dalton@blazecutusa.com to discuss the right setup for your fleet.

I am a distributor or catalog company. How do I carry BlazeCut?

BlazeCut USA is actively building its wholesale and dealer network across the country. If you are an industrial distributor, safety equipment supplier, or catalog company interested in stocking BlazeCut T Series systems, fill out the [Wholesale Partner Application] on our website or email Dalton@blazecutusa.com to start a conversation.

I manage a fleet or facility and need multiple units. Can I get volume pricing?

Yes. BlazeCut USA works with fleet managers, facilities teams, OEM manufacturers, and EHS departments to configure fire suppression programs across larger equipment inventories. Email Dalton@blazecutusa.com with details about your fleet or facility and we will connect you with the right resources.
